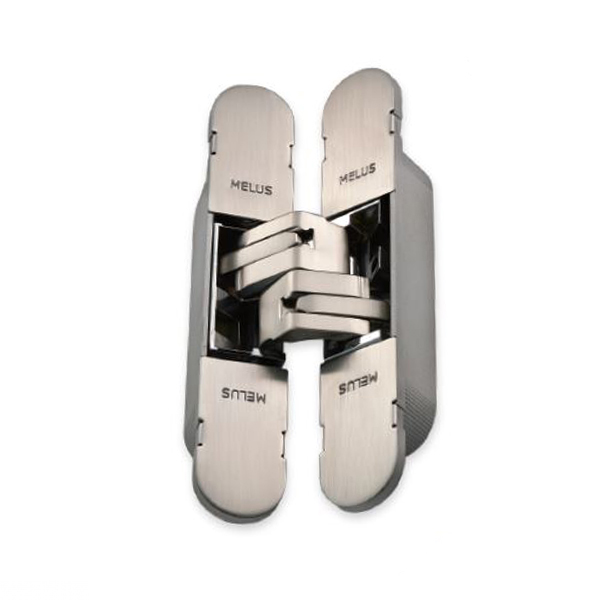

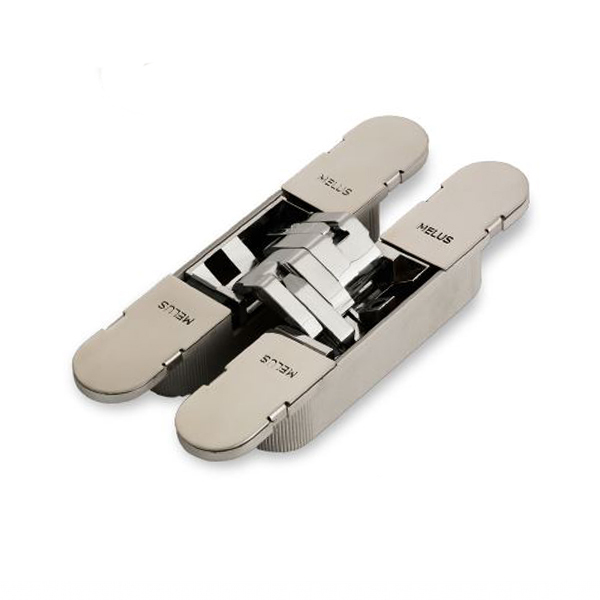

3DHinge MS-711
Description：
- Concealed into door and door frame.
- 3-D adjustability : horizontal ±1mm, vertical
- ±2.5mm and depth -1.5mm/+2.5mm
- Opening angle :180°degrees – Non-handed
- Min. door thickness: 30mm
- Min. Door frame depth:25mm
- Max.door weight:40kg(2 hinges),60kg(3 hinges)
- Non-handed
- Body: Zinc Alloy
- Arms: Zinc Alloy
Download file

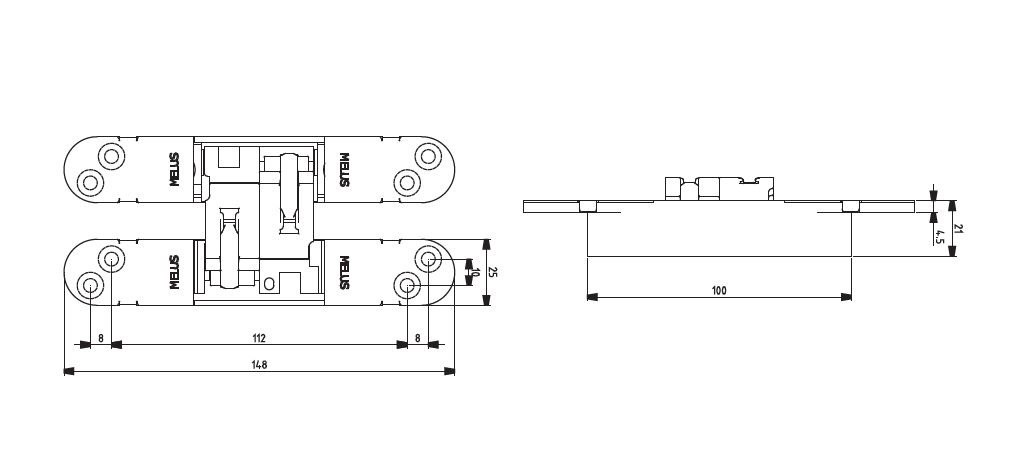

Dimensions
