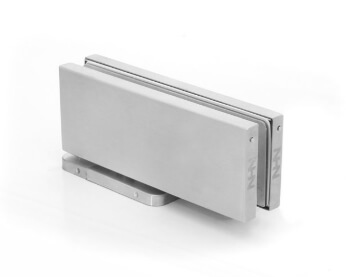

NHN PDC100S
Description：
- NHN’s next generation of hidden door closer!
- Easy opening with increased efficiency on the closing torque.

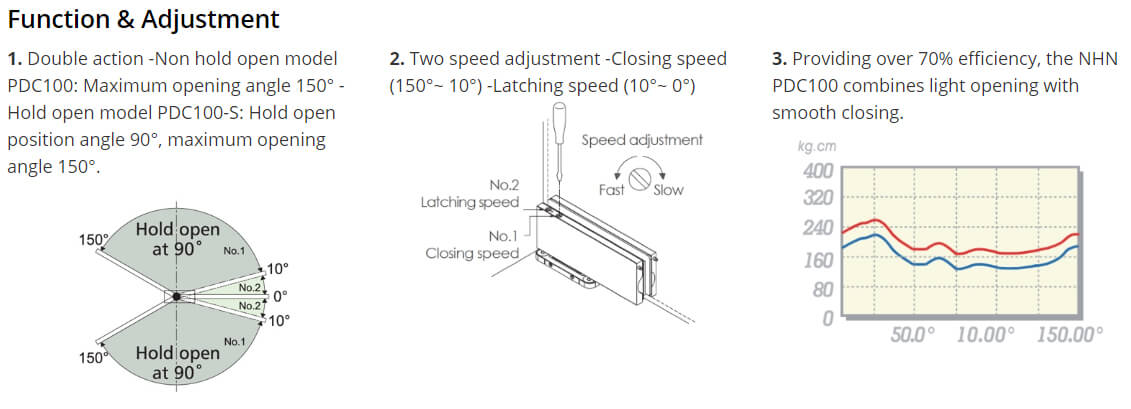

- The closing speed is easily adjusted via two independent adjustment valves.
- Available with or without hold open at 90º.
- Successfully awarded EN1154.
- 5 years guarantee.
Product Detail
- Suitable for a glass door 8-13mm thick, 750 -1000mm wide and a maximum weight of 100kg.
- Supplied none handed the NHN PDC100 provides optimum efficiency with quick and easy installation.
- Simple final adjustments. 3mm backward / forward, 3mm left / right, ± 4° alignment.
- Ambient temperature -20° - + 50°.

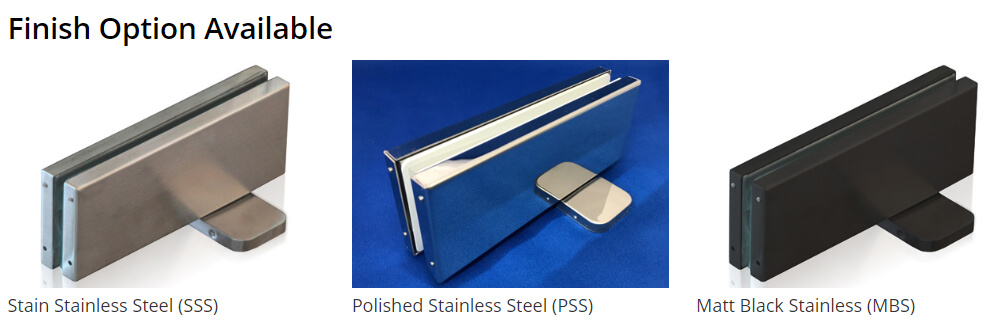

- Finishes available as standard are satin and polished stainless steel.
(other finishes are available on request).
