GS700 series Soft Closer is designed to bring sliding doors to a  safe, smooth and controlled stop that prevents the door from bouncing or slamming shut and eliminates pinch points.

GS700 series is a bi-directional soft close, gently and quietly catching the door at both open and close positions.

Model GS700A : Soft-Close

• Bi-directional soft close
• Door weight : Max. 100kg (220lbs)
• Door thickness : Min. 30mm (1 3/16”)
• Door width : 530 to 1500mm (20 7/8 to 59”)

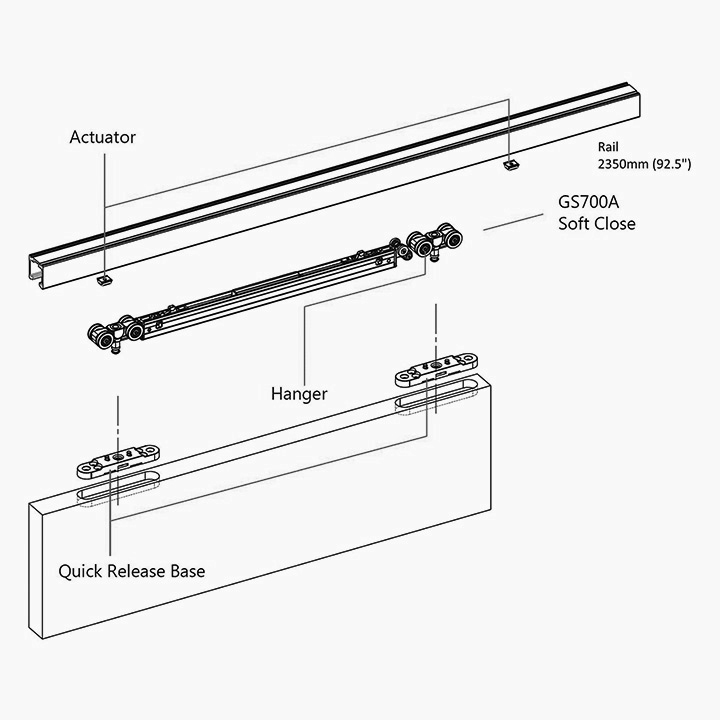

Configuration


GS700A Components

Model GS700BP :
Soft-Close + Auto return + Push release

• Features
  1.Buffer program can be adjusted according to the door weight.
  2.Maximum soft closing distance : 220mm.
  3.Door can be hold open.
  4.Door can hidden in the door frame completely.
  5.Automatic return.

• Weight Capacity: 10-25kg /25-50kg /50-80kg
• Door Thickness: Min 30mm
• Door Height: Below 2500mm
• Door Width: 830mm-1200mm
• Door Height Adjustment: +/-3mm with Quick Release Base

Configuration


GS700BP Components


Installation:
